Units of Input

GiD Plus (Modules) CODE_BRIGHT
1

Hi there,

I am using Code_bright 5.2. I have some confusion regarding the units. While applying force/Disp BC, there are two options for Nodal force and Boundary Stress. What are the units for these two parameters. If I apply -1 in Y direction, what would be the amount of Force or Stress in Y-direction.
I have attached herewith the screen shot.

Thank you

-Kevin

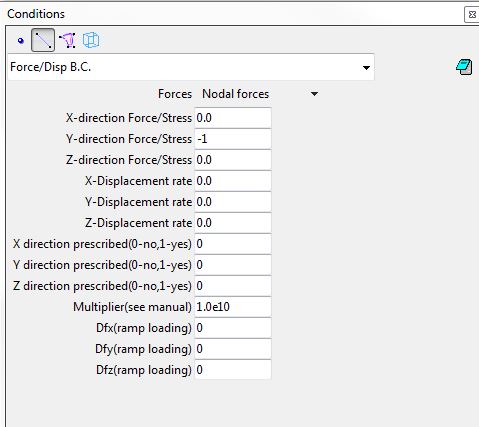

Force_Stress.JPG479×427 26.7 KB

2

Dear Kevin,

Forces are in MN and Stresses are in MPa.

Normally we only use Nodal Forces (MN) when prescribing a displacement in a boundary. If we are setting a stress, representing e.g. a foundation, then we should use Boundary Stresses (MPa).

Regards,

Alfonso
