Print to file SVG in mesh drawing corrupted

GiD Advanced visualization
1

It seems that “Print to file” “SVG..” in mesh drawing corrupted.
Regards,

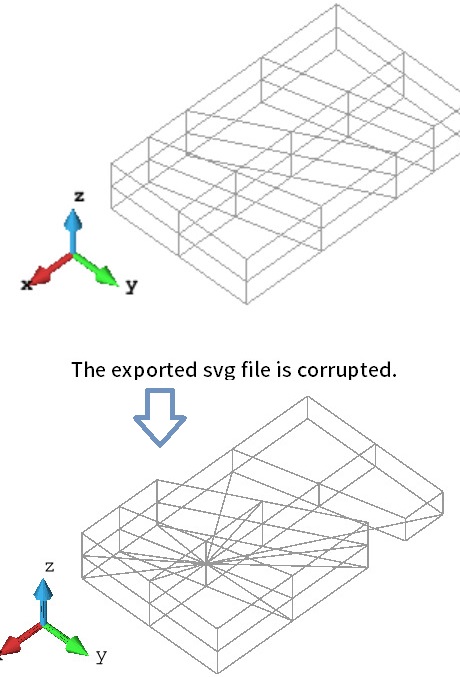

test3d_mesh.jpg460×677 70.3 KB

2

Please, attach a zip with the GiD model.
I have tried with a similar model, it is attached
test_svg.zip (18.7 KB)
and it worked well
This is a screen capture opened with the InkScape editor

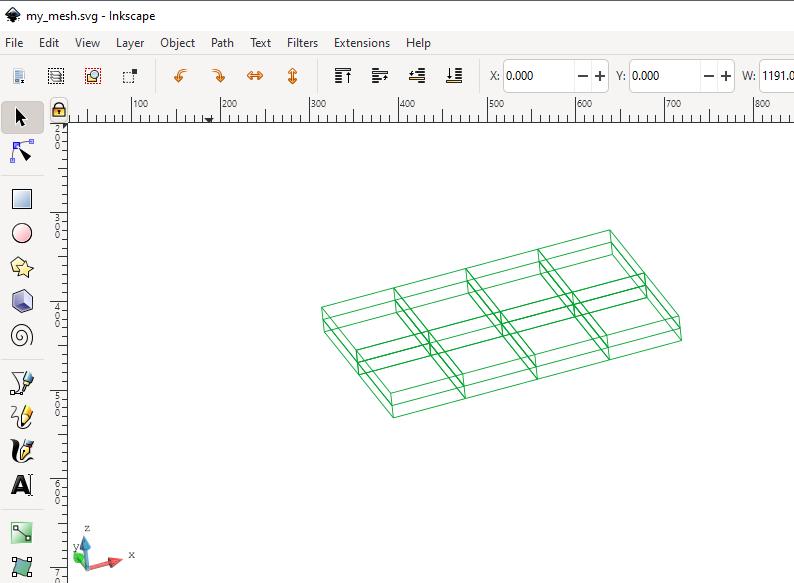

gid_export_svg.png794×583 42.4 KB

3

Thanks for the reply.
I attached zip file; my testing model is in it.
Am testing it by GiD 15.0.3 (free version).
Regards,
testingSVGexport.gid.zip (25.8 KB)

4

Hi Hemmi,
Are you using an AMD Radeon graphics card? Which graphics card are you using?
We found a similar problem with the drivers of AMD Radeon cards and are solving it.

Can you try the Preferences → Graphical → System → ‘Safe visualization mode’ ?
and see if the SVG is exported correctly?

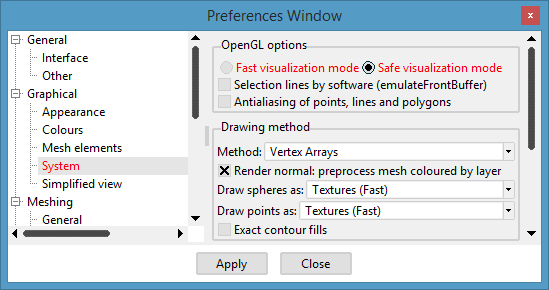

SafeVisualizationMode.png549×290 8.36 KB

Can you send us your gid.ini file (located at c:\users<YourUserName>\AppData\Roaming\GiD\15.0.3\gid.ini) ?

thanks,

gidteam

5

Thank you for the answer.

The graphics card of my laptop PC (Lenovo ideapad 330S-14IKB) is
Intel(R) UHD Graphics 620.

After changing to “Safe visualization mode”, the correct figure is drawn; thus the problem solved.

The attached gid.ini file is the version after “Safe visualization mode” applied.

Regards,
testingSVGexportMESHsafevisual.zip (16.7 KB)
