Dear all,
I would like to plot isosurfaces on prismatic 3D elements. However the plots are fragmented as in the attached photos…
I tried with both last developer and official versions.

Thank you in advance for your help!

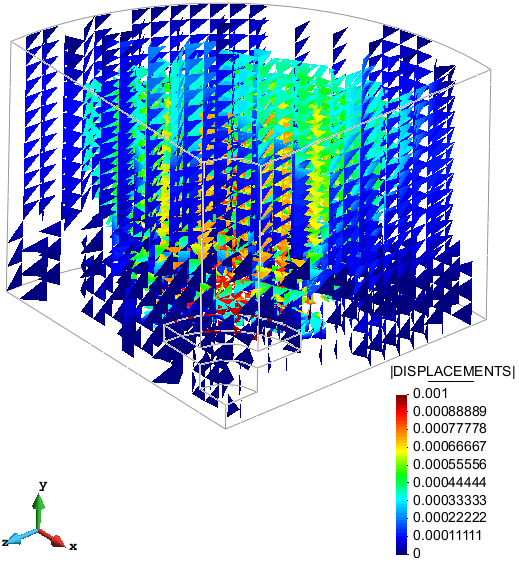

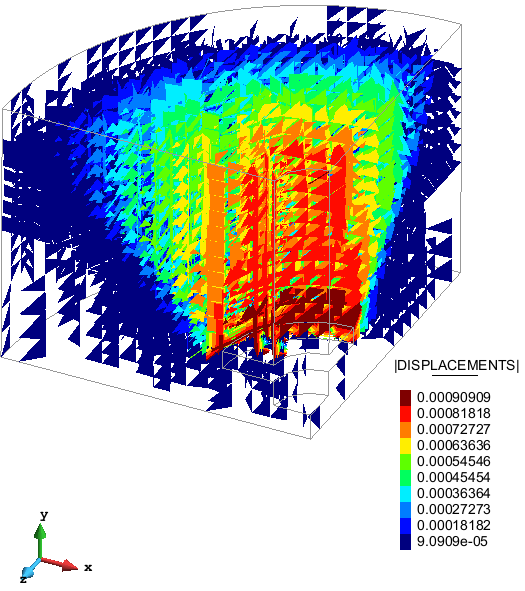

Captura.PNG519×571 56.4 KB

Captura2.PNG525×591 35.8 KB

2

Hi,
can you post the example? are they linear or quadratic prisms?
best,

gidteam

3

Hello Miguel,
those prisms are linear. I sent you an email with the result files, since they are too big to be posted here…

4

Hi Lorenzzo,
the bug has been corrected for the next GiD version!,
thanks,

the giteam

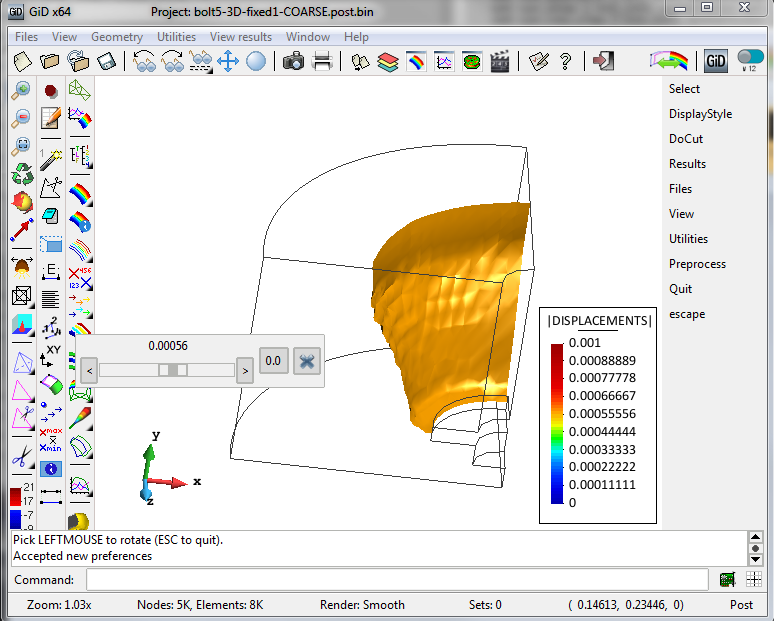

borrar.png774×621 94.7 KB

5

Hi Miguel!

thank you very much!! when will the next version of GiD be available?

6

Last friday (4th Dec 2015) we made available a new delevoper version 12.1.9d with some fixed bugs and a few new features.
It is available now for Linux and Windows, and this week we will provide the Mac OS X versions also.

Unfortunatelly the fix of your problem (iso-surfaces on prism elements) has been done just after release this version and won’t be available until version 12.1.10d (we don’t have any specific date to release another developer version, maybe in a month…)
