Hi,
First of all I love this program it is very good and I hope to become quite good at it some day!
I am having some difficulties however with how to connect parts that are curved. For example:
I have three items, a metal piece (centre), glue, which is around metal piece that has set(hardened), and a hollow pipe. Basically I want to know how to connect the set glue (modeled in blue) to the curved surface of the hollow pipe. At the moment if I just use straight lines then of course it will leave voids. What are some recommendations people here have?
Attached is an example of what I am talking about and the hollow pipe in GiD.
Thank you
DN
Pipe.zip (47.6 KB)
I recommend you to discard the very small region between the straight line and the arc. It could be impossible to fit mesh elements in a too thin volume. Off course it depends on the kind of simulation to do.
For example use as side for the rectangle the arc instead the straight segment.
I attach a GiD model build from scratch based on your picture.
pipe_2.zip (649 KB)

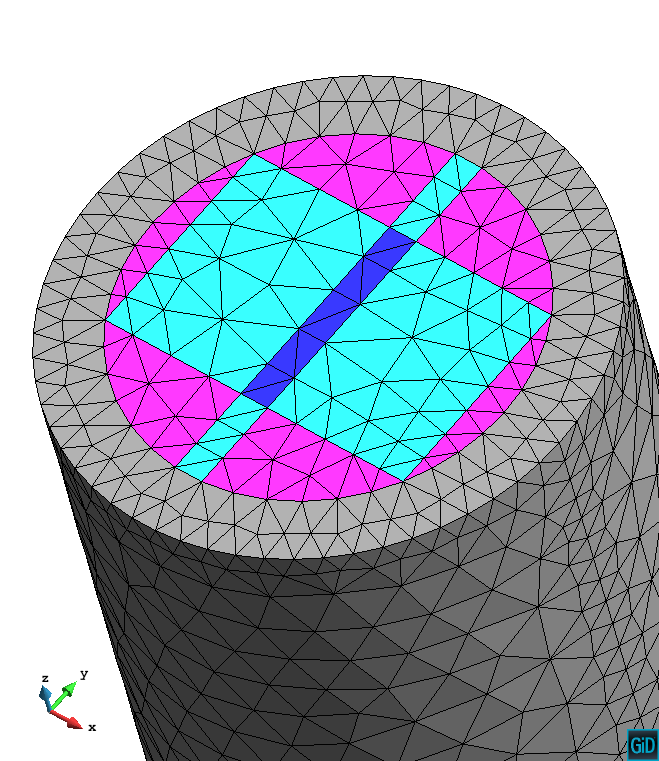

this is how a coarse volume mesh looks like
Dear Sir,
My apologies for the late reply, I thought I would be emailed upon reply and never received one!
I could not open your file unfortunately! What is the process to open these files?
Regards,
Divide
Dear Sir,
I did not reply due to not receiving an email notifying me of your reply so my apologies for not thanking you sooner.
I could not open these files, could you please advise?
Regards,
Divide
You must simply unzip the file (that contain a .gid folder)
and then start GiD and select this folder in preprocess with
Files->Open
