How to view double nodes of contact?
Posted: Tue Mar 14, 2023 7:23 am
by Hemmi

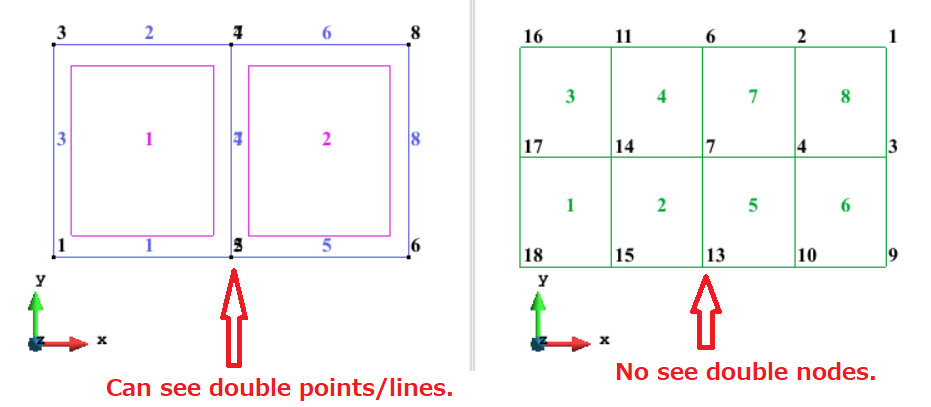

When I generate a contact, I can see from the GiD drawing that the geometry contains double points and lines, but I cannot see that the nodes are double when the mesh drawing is selected. Is there a way to see this on the sheet?
- CanSeeDoublePointsButNotDoubleNodes.png (32.31 KiB) Viewed 5009 times
Re: How to view double nodes of contact?
Posted: Tue Mar 14, 2023 10:02 pm
by escolano
Your nodes are really preserving the geometry topology, they are duplicated.
you can check for example listing them,

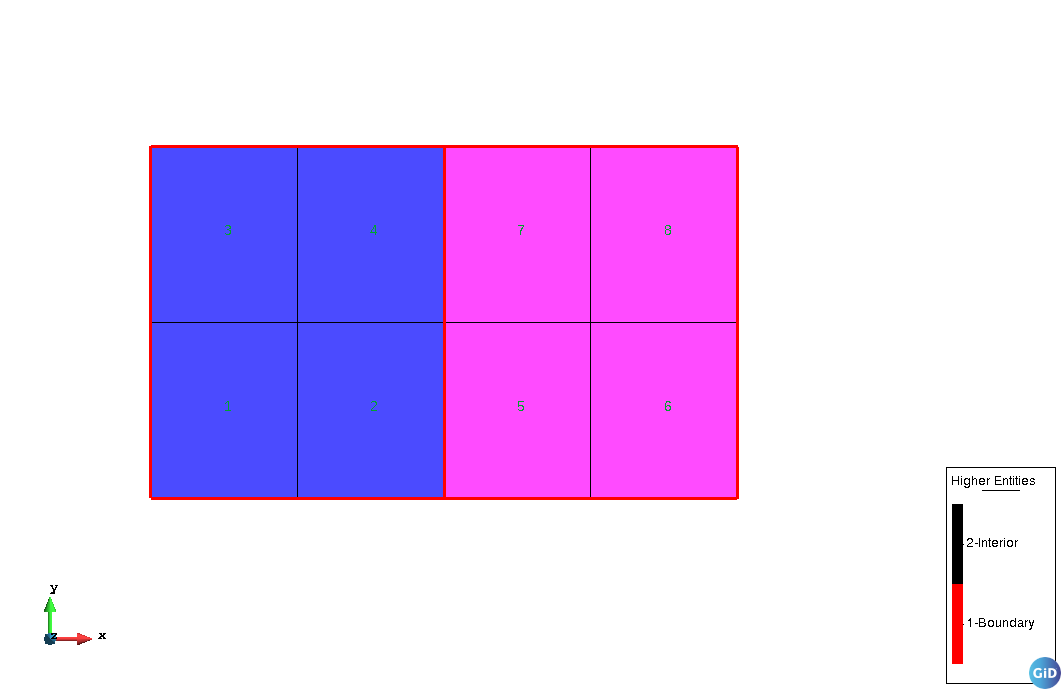

or drawing higherenties of mesh edges: View->Higherentities->Edges (in mesh view)
- higherentities_mesh_edges.png (9.13 KiB) Viewed 4999 times
The problem is probably a secondary effect of the rendering of the font 'smoothed' for the text of your labels
Utilities->Preferences->Fonts - Render mode = "sharp edges" of some kind of "smooth edges"
With 'smooth edges' the text looks better, more anti-aliased, etc. but as drawback labels on the same location are hiding ones to others, then I prefer to set 'sharp edges', it looks a little worst but its 'transparency' provide an important information of duplicated entities.
Compare this examples with 'sharp edges' vs 'Smoother edges 2" (labels font size set too big to 30)

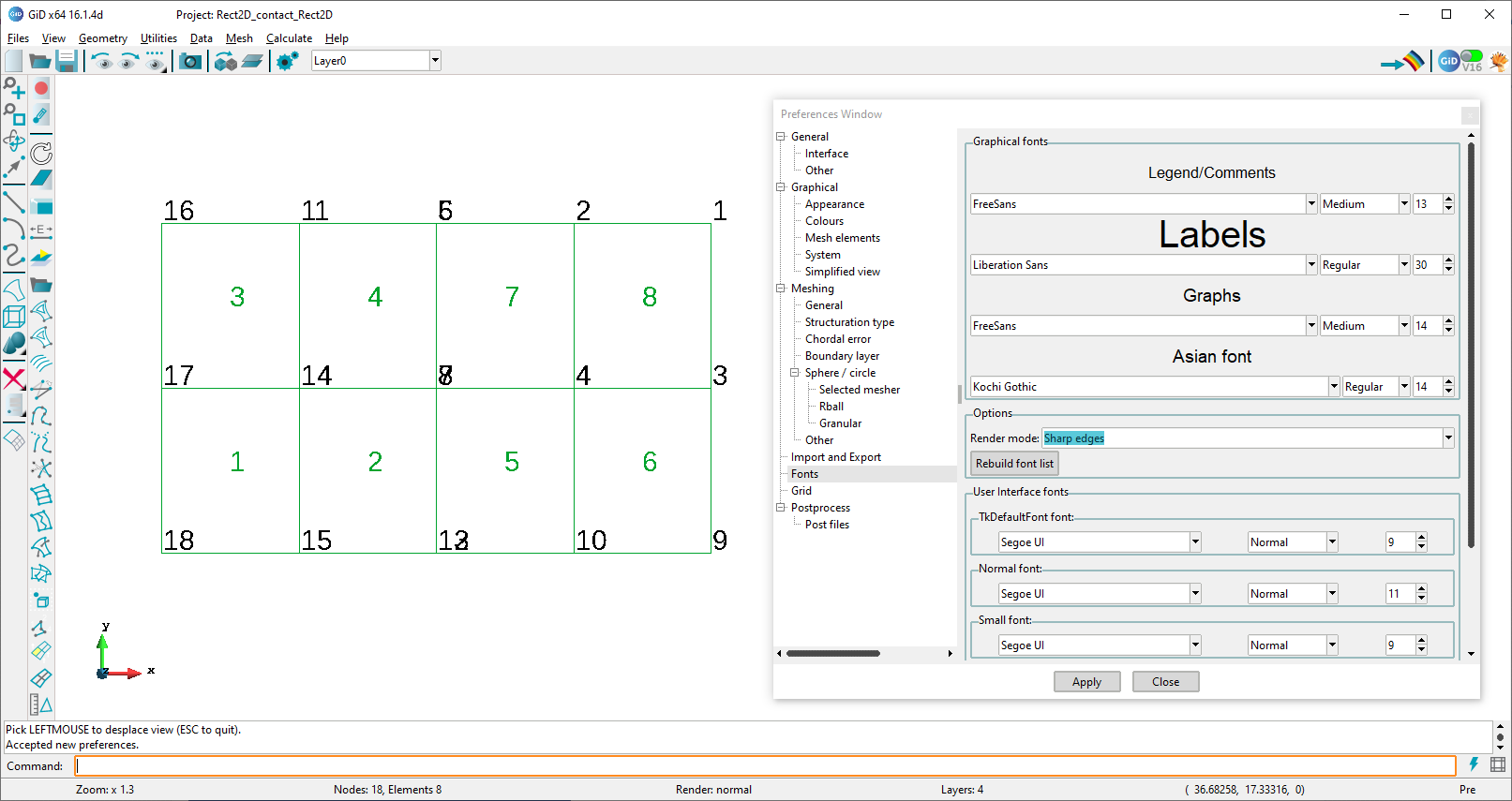

- labels_text_sharp.png (92.4 KiB) Viewed 4999 times

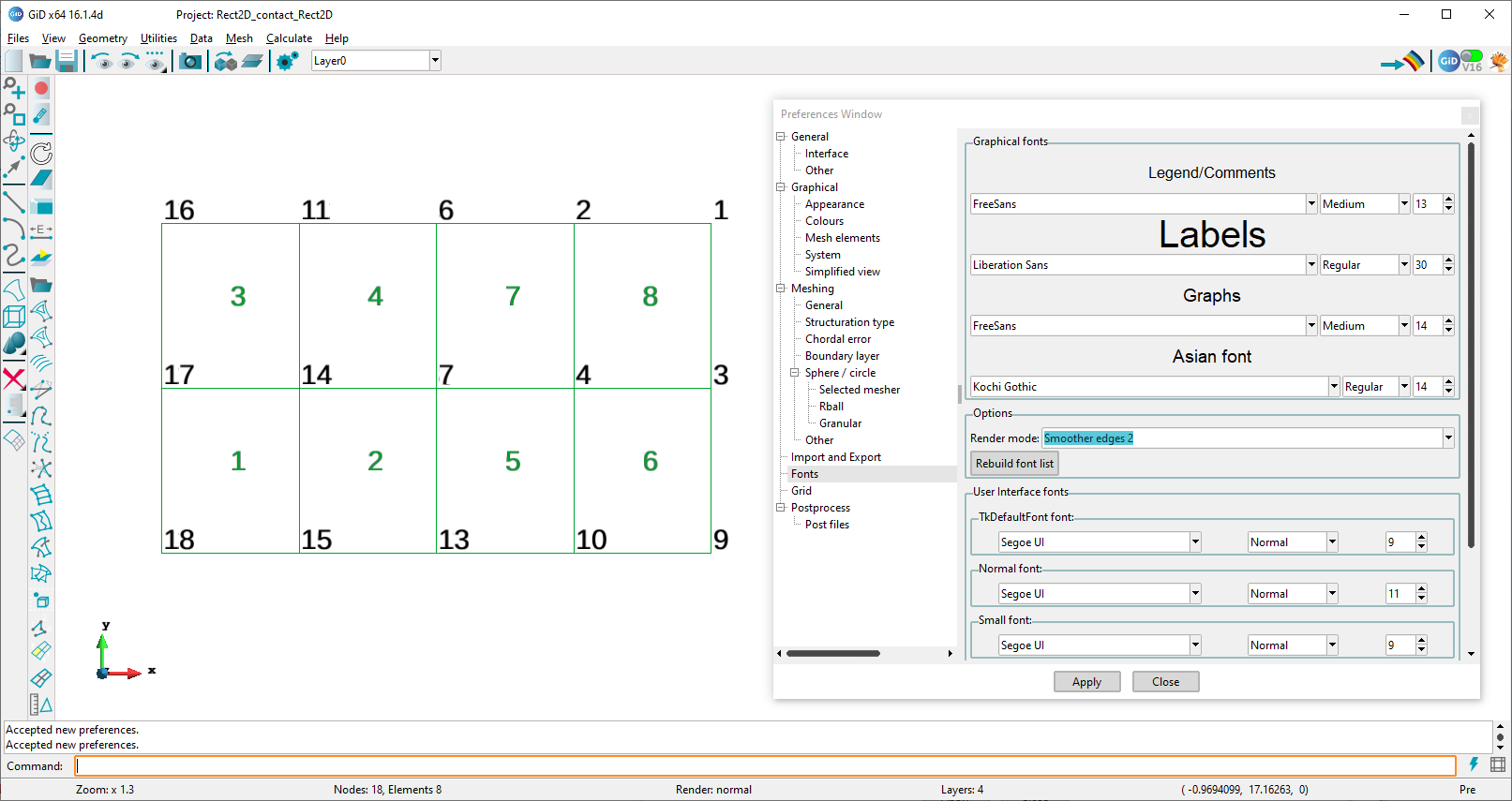

- labels_text_smoothed.png (113.92 KiB) Viewed 4999 times
