Hi there,

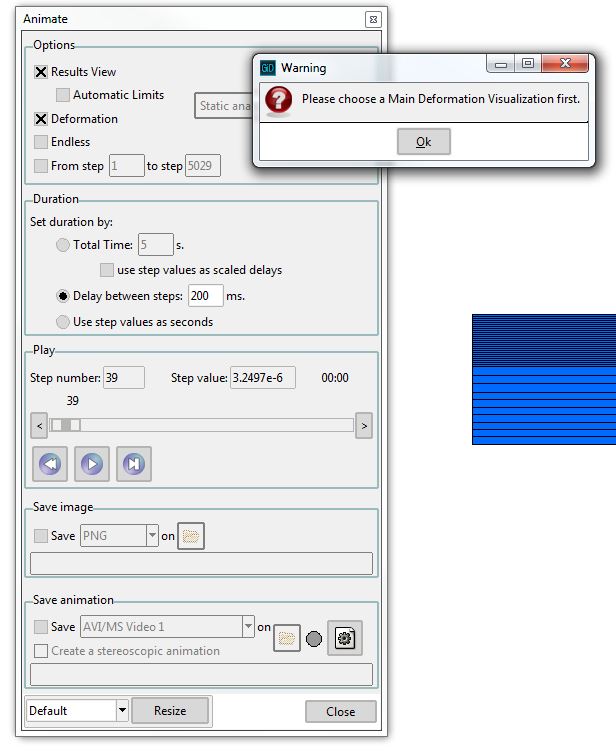

I am trying to visualise my results showing a deformed mesh! However, when I am ticking the box to see the deformed mesh an error comes up as could be seen in the attached picture?
Any suggestions?
Kind regards
Bashar

Deformed-mesh.JPG616×754 55.6 KB

2

To set the main deformation go to menu:
Window->View results…

view_results.png363×382 4.7 KB

and set the vector result to be used to deformate, and the scale.

or go to menu
View results->Deformation->your vector result
